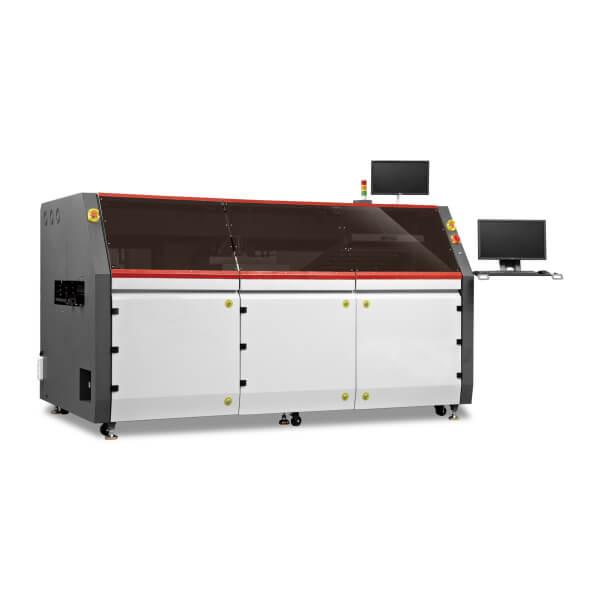

Automatic Selective Soldering System
- max solder temperature 350℃
- solder pot capacity 15 KG
- dimension L1280mm X W1400mm X H1650mm
- Net weight 380KG
- Product description: Are you searching for an selective soldering machine? At Flason SMT you are in the right place for buying automated selective soldering machine.
-
INQUIRY
Online Dual head Selective Wave Soldering Machine
Products description
Advantageous:
(1) Double head spray and welding, greatly improve production efficiency.
(2) PCB plate fixed, spray and welding platform moving.
(3) High welding quality, greatly improve the pass rate of welding.
(4) Modular design of SMEMA online transportation, support customers for flexible line formation.
(5) Full PC control. All parameters can set in PC and saved to PCB menu, like moving path, solder temperature, flux type, solder type ,n2 temperature etc, best trace-ability and easy to get repeat soldering quality.
Standard machine include:
|
Serial
|
Item
|
content
|
Quantity
|
|
1
|
Controlling system
|
PC & monitor
|
1 set
|
|
Live on monitor camera
|
|
motion control
|
|
2
|
Platform motion system
(Flux Spray）
|
xy motion table
|
1 set
|
|
2 axis equipped with ball screw & linear guild rail
|
|
2 axis equipped with servo motor & driver
|
|
3
|
Fluxing system
|
Imported fluxing jetting valve
|
1 set
|
|
flux tank
|
|
flux pneumatic system
|
|
Nozzle automatic cleaning system
|
|
4
|
preheating system
|
Preheat the hot air,IR heater at bottom
|
1 set
|
|
5
|
Platform motion system
(Solder pot）
|
xyz motion table
|
1 set
|
|
3 axis equipped with ball screw & linear guild rail
|
|
3 axis equipped with servo motor & driver
|
|
6
|
Soldering pot
|
15kg capacity solder pot, impeller, tunnel, servor motor
|
2 set
|
|
solder temperature over heat alarm system
|
|
solder temperature controlling system
|
|
n2 inline heating system
|
|
Standard equipped solder nozzle（inner 4mm x 3pcs, 5mm,6mm )
|
|
7
|
Conveyor system
|
Independent step drive of front and rear transport guide rail (spray preheating section)
|
1 set
|
|
Front and rear chain transportation guide (spray preheating section)
|
|
Spray section of PCB plate blocking device, preheating section
|
|
Independent step drive of front and rear transport guide rail (tin soldering section)
|
|
Front and rear roller transport guide (tin soldering section)
|
|
PCB plate blocking device tin soldering section
|
|
side clamping system
|
|
8
|
Machine chassis
|
machine frame/cover & painting
|
1 set
|
Keywords:
Wave Soldering Machine, Dual Rail Wave Soldering Machine, High End Wave Soldering Machine, Nitrogen Wave Soldering Machine, China Wave Soldering Machine, Wave Soldering Machine Manufacturer.
<span font-size:16px;background-color:#ffffff;"="" style="box-sizing: border-box; color: rgb(204, 51, 229); font-size: 16px;">
Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT reflow oven, wave soldering machine, pick and place machine, solder paste printer, PCB loader, PCB unloader, chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment smt spare parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: sales@flason-smt.com
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
