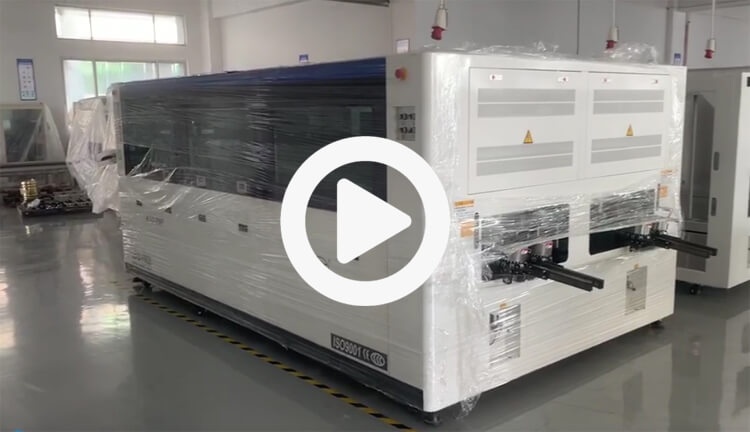

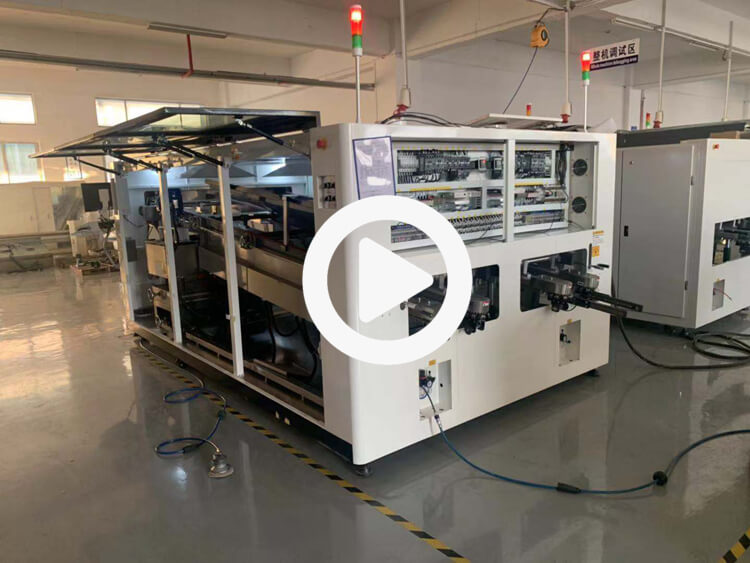

Dual Rail Wave Soldering Machine KTU-350D

Model No.︰	KTU-350D
Brand Name︰	flason smt
Country of Origin︰	China
Unit Price︰	US $ 45000 / pc
Minimum Order︰	100 pc

Total 36 Related Items

Product Description

Preheating zone 4 zones
Solder pot capacity Approx.480kg
Solder pot capacity Approx.480kg
Dimension 4500*3000*1730mm
Product description: Dual Rail Wave Soldering Machine KTU-350D Manufacturer, Preheating zone 4 zones, Solder pot capacity Approx.480kg, Weight Approx.3000kg, Dimension 4500*3000*1730mm
INQUIRY

Dual Rail Wave Soldering Machine KTU-350D

Specifications:

Machine Specification
Model	Solder pot type
PCB width	Heating technology
PCB convey height	Solder pot temp.
Conveyor speed0-1800mm／Min	±1℃	Finger types
Component height limit	Solder bar adding way
Wave height range	Temp. control
Wave quantity	Machine control
Preheating length	Width adjust
Preheating zone	Flux adding way
Conveyor direction	Flux flow rate
Preheat power	Spray method
Preheat temp.	Flux recycle
Heating model	Electricity
Solder bar type	Total power
Solder pot power	Normal running power
Solder pot capacity	Air supply
Solder pot material	Dimension
Weight

Machine cover
Structure Streamline cover design, the frame is made of thick square tube, the cover is made of 2mm steel plate. There are totally 6 wheels to move the machine easily.
Front door structure Fully enclosed glass door, transparent，pneumatic holder to support, ensure the operating and repairing space.
Machine top Anti-explosion lamp
Surface treatment Painted with white color
Flux spraying
Spray nozzle Spray range:20~65mm,adjustable，nozzle height: 50~80mm adjustable，max. flow rate:100ml／min
Air circuit Acid and alkali resistant air pipe, the brand is SMC from Japan.
Nozzle moving system Step motor to drive, Mitsubishi PLC, with proximity switch and entrance sensor to control, according to the coming PCB’s speed and width, the spraying system can detect and starts to work.
Flux recycle system Tray to hold the waste water and flux, can be draw out easily, make maintenance very convenient.
Flux exhaust system Exhaust system：stainless steel mesh frame+ double layers filter，recycle the flux to maximum.
Isolated air curtain Air pressure type knife, blow the redundant flux into the recycling box, to avoid the flux to enter into the preheating zones, ensures the safety.
Spraying box structure Made of full stainless steel, easy to clean and repair. Anti-corrosion, very durable.
Preheating
Preheating zone quan. Preheating length is 1800mm, divided into 4 sections, supply abundant adjusting space, very good for big PCB and complicated PCB. Reduce the heat impact on PCB, improve the production efficiency.
Temp. control method Mitsubishi temp. collecting module, PID is very precise and stable.
Heating parts The heaters are imported from Taiwan, heat up very fast, with long life, small thermo lag; The heat is even in the zones.
Preheating power 22kw
Install mode The heating module adopts drawer design, easy to replace and repair, make the maintenance very convenient.
Transmission
Rail Made of aluminum, wear resistant and without distortion.
Rail parallelism Width adjusting accuracy less than 0.2mm
Width adjust Manually/motorized
C/V speed setting unit Min.1mm／min 0-1800mm／min
C/V speed variation range Electric closed-loop control, within 0-10mm／min
Conveying motor Panasonic motor from Japan
Solder pot
Low oxidization design High quality solder pot, the heat is very steady. Adopts liquid solder flow design, reduce the impact oxidization, especially for small PCB.
Economical running Reduce the power consumption
Moving method Motorized
Wave adjustable height 0-18mm
Wave motor TCG motor from Taiwan，adjust the wave height with frequency conversion.
Preheating parts Adopts the stainless steel heaters from Taiwan, with long life and power saving up to 40% daily.
Cooling
Cooling method Adopts high power centrifugal fan, reduce the air bubble and solder pad stripping
Automatic finger cleaning
Imported premium pump, can wash the fingers from both sides. Propyl alcohol to clean and can be recycled.
Control software
★Automatic alarm function for failure:：thermocouple abnormal，temperature is too high or too low；if preheating system or solder pot is abnormal, the heating stops.
★Preheating temp., solder pot temp., conveyor speed, spraying and cooling can be controlled separately.
★One week automatic power on/off setting （three times one day）
★The emergency stops are in front, rear of the machine, press them in case of any emergency.
Nitrogen protection system (option)
Standard N2 configuration includes nitrogen closed construction, pipes, N2 flow meter, water chiller and oxygen analyzer.
