Wave Soldering Machine N250

Total 36 Related Items

Product Description

Weight: 700KG
Dimensions: 2600(L)*1200(W)*1600(H)
spray fashion: SMC+ST 8 nozzle
Heating zone Length: 800mm
Product description: Environment Friendly Wave Soldering Machine,Just 7500USD with good quaity. If you are searching for a small wave soldering machine, at Flason SMT you are in the right place for buying this equipment.
INQUIRY

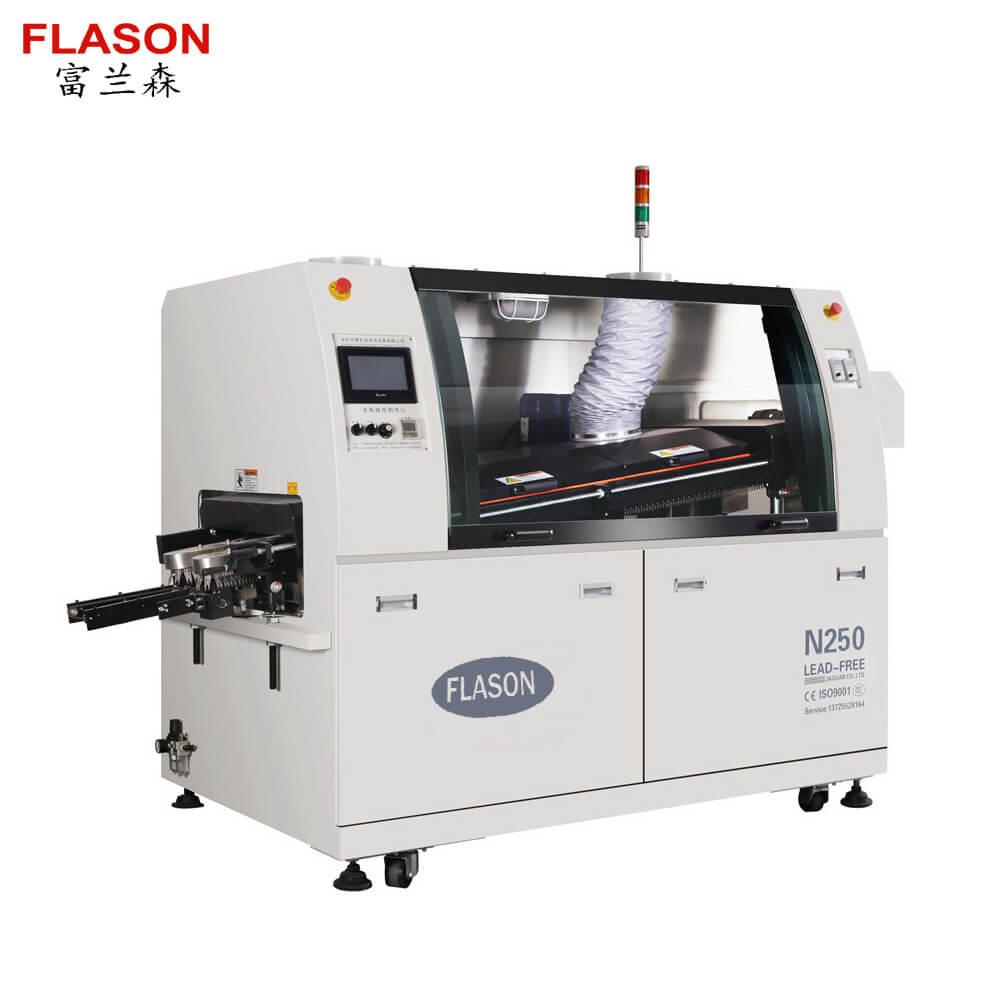

Environment Friendly Wave Soldering Machine N250

Introduction of Environment Friendly Wave Soldering Machine:

1. Automatic conveying power system and auto synchronous board feeding functions.

Solder Pot peak uses frequency conversing speed adjustment which can independently control the wave height.
Fluxer system using transverse Japanese spray nozzle, driven by pneumatic cylinder and PLC control, accurate and reliable.
PLC is used to control the machine, to ensure the reliability and stability of the system.
Pre-heaters using Infrared heating element, heat radiated efficiently to the circuit board with fast ramp up and fully activating liquid flux.
Special alloy solder fingers, strengthened double v-groove.
Solder-motor adopts imported high frequency conversion motor with independent control, stable performance and long lifetime.
Pre-heater passage with modularized design, meet with environmental protection requirement, safety and convenient to cleanup.
Preheaters uses three independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.
Timer startup feature for solder pot, solder melted within 90 minutes.
Automatic finger cleaner ensure the cleanliness of solder fingers.

Intelligent monitoring and alarm system ensure the stable performance and operators’ safety.

Model No.	FLASON N250
Number of Pre-heaters	2
Pre-heater passage	800mm
Body size	1800(L)1200(W)1600(H)
Outside dimension	2600(L)1200(W)1600(H)
Weight	700KG
Total/steady consumption	11KW/4-6KW
Air supply	0.5MPa
Preheating style	Hot air
Preheater consumption	220V 5KW
Control method	Press key +PLC Option: touch screen, PC
Range of temp. set-point	Room temperature---300ºC
Preheating time	About 10-15mins for setting 150ºC
Solder application	Lead-free / Sn-Pb
Solder pot capacity	220KG
Solder pot temperature	300ºC
Solder pot consumption	380V 6KW
Solder temp. control method	PID&SSR
Wave motor power	500W 220V
Solder melting	About 120mins for setting 250ºC
PCB width	50-250mm
Conveyor speed	0-1800mm/min
Conveyor direction	L-R (R-L optional)
Conveyor Inclination	4—7 º
Flux pressure	3-5 bar
Flux capacity	3.2L
