Ersa ETS 330 -Mini Wave Soldering Machine
Ersa ETS 330 -Mini Wave Soldering Machine
Products description
- A compact wave soldering system for the industrial manufacture of small to medium production volumes
- Inline-capable dual wave soldering systems with 330 mm maximum working width and code operation
- Precise and economic flux deposition on account of a freely defined spray area
- Powerful preheat with 900 mm length protected by a glass ceramic (ceran glass) cover
- Additional and programmable length of stay over the preheater for assemblies requiring more heat
- Ideal combination of solder nozzles for all applications
- Robust conveyor system with forced guidance of the pallet
- Modern controls with a graphic user interface and touch-screen
- Automatic heat-up with weekly time clock
- Large solder program library with up to 199 different programs
Ersa ETS 330 -Mini Wave Soldering Machine
The Ersa ETS 330 is a microprocessor controlled Wave Soldering System to process boards populated with SMD and through-hole components up to a board width of 330 mm. The ETS 330 is ideal for the use with low-solid fluxes. The ability to store 199 programs, the clear text entry of all process relevant parameters and the self-monitoring function of the system ensure a high degree of repeatability.
Dimensions
Length approx. 2,000 mm
Width approx. 890 mm
Height approx. 1,400 mm
Conveyor systems
Pallet conveyor
Maximum conveyor speed: 2,5 m/min
Maximum working width: up to 330 mm
Media supply
Compressed air
Electrical power
Exhaust
Preheating
Heat transfer via medium and short wave radiation
Length of preheat: approx. 900 mm
Solder module
Depending on the alloy used, solder content is between 360 to 410 kg
Options:

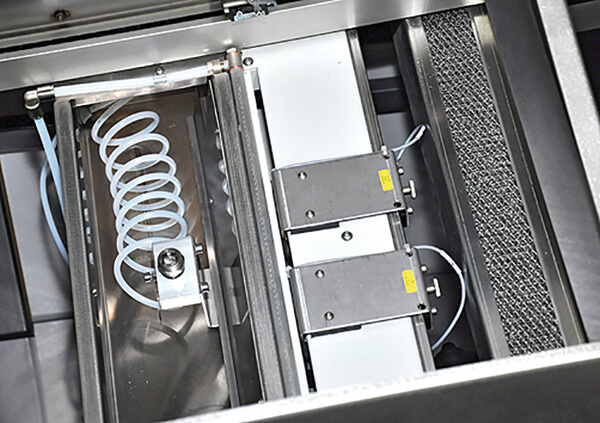

- FOCUS spray fluxer
- Short wave emitters
- Dual wave solder module with pre-solder nozzle (SMD nozzle)
- Prolongation of preheat through dwelling oft he PCB over the preheater
- Solder level monitoring
- Exhaust monitoring
- Touch-operation terminal
- Weekly time clock
- Cooling unit after soldering
- Infeed and exit extensions
Keywords:
<span font-size:16px;background-color:#ffffff;"="" style="box-sizing: border-box; color: rgb(204, 51, 229); font-size: 16px;">smt wave soldering machine,smt soldering oven, THT soldering machine, SMT soldering machine, smt assembly line dual wave soldering machine, PCB soldering machine, SMT assembly machine, PCB soldering dual wave machine, LED wave soldering machine, LED PCB wave soldering machine.
Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT reflow oven, wave soldering machine, Pick and place machine, Solder paste printer, PCB loader, PCB unloader, Chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment SMT Spare parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: sales@flason-smt.com
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
