SMT Offline AOI Inspection Machine ZW 500

Model No.︰	ZW 500
Brand Name︰	flason smt
Country of Origin︰	China
Unit Price︰	US $ 20000 / pc
Minimum Order︰	100 pc

Total 13 Related Items

Product Description

Dimension:900*1100*1350 mm
PCB width:30x30-450x330mm
Inspection Component: 0402 chip
Weight:Aprox. 450kg
Product description: SMT Offline AOI Inspection Machine ZW 500, Dimension:900*1100*1350 mm, PCB width:30x30-450x330mm, Inspection Component: 0402 chip, Weight:Aprox. 450kg
INQUIRY

SMT Offline AOI Inspection Machine ZW 500

SMT AOI Machine Specification

The vector analysis algorithm and the multiple detection algorithms are combined to achieve the best detection side capability.
The full version matches multiple pieces of detection at any position.
Smart camera barcode recognition system (identifying 1D code and 2D code).
Multi-line monitoring system, all production line production status is clear at a glance.
The remote programming and debugging control functions are used together, and the software control performance is stronger.
Multifunctional high precision new algorithm new interface

Custom IPE separately assigns light sources based on current components
Users can customize the image source with simple expressions, and different algorithms can combine different effects, which can greatly improve the detection rate and reduce the false positive rate. The image source in the Qubit AOI system can understand the dot matrix of pixels. Each pixel is represented by data from 1 to 4 channels. The IPE expression can independently calculate each pixel in the image source to generate a new image.
Full-page detection.
Multi-piece detection function for any position of the entire PCB.
More intuitive and fast NG OK image.
The programming interface of the introduction, regardless of the PCB size, the PCB is in the visible range.
Imported servo control system
All major components are made of internationally renowned brands, with high service life and low failure rate under the premise of ensuring the running stability and motion accuracy of the equipment.
With high color reproduction effect, combined with high-resolution and high-definition optical telecentric lens, the product has high discrimination and high-definition image, providing high-definition image output for AOI equipment.

5.0M pixel-level telecentric optical lens.
Based on its unique optical properties: high resolution, ultra-wide depth of field, ultra-low distortion and unique parallel light design, it brings a qualitative leap to machine vision precision inspection.

Inspection System & Optical System

category	project				Specifications
Optical system	Camera				5 million Gigabit network color high speed camera
	Resolution				10/15/20 micron/dot (optional) comes standard with 15 micron/point (corresponding to FOV: 36mm*30mm)
	Optical lens				5.0M pixel telecentric lens, depth of field: 8mm - 10mm

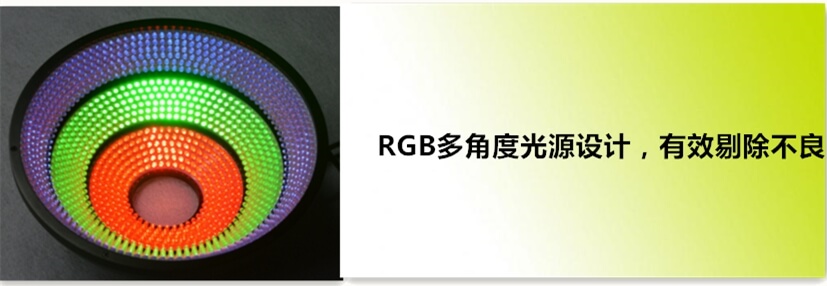

	Light source system				RGB ring multi-angle LED structure light source
	Light source control system				Digital constant current controller
	Image processing speed			FOV processing speed	<170 milliseconds
				Movement speed	Up to 700 milliseconds
				Detection speed	3500 square millimeters / second
	Characteristics				IPE is an abbreviation of Image Processing Expression, which allows users to customize the image source with simple expressions. Different algorithms can combine different effects, which can greatly improve the detection rate and reduce the false positive rate. The image source in the Qubit AOI system can understand the dot matrix of pixels. Each pixel is represented by data from 1 to 4 channels. The IPE expression can independently calculate each pixel in the image source to generate a new image. Can detect multiple pieces anywhere in the class
	operating				Graphical offline programming and debugging, accurate automatic positioning of micron, fast process, support for remote offline debugging, does not affect the normal test of equipment
	Mark	Points			2 common Mark points can be selected to automatically correct the horizontal Mark
	Test content	Solder paste printing			Skew, Wuxi, Shaoxi, Duoxi, Open circuit, pollution, bridging
		Patch			Missing parts, offset, skew, tombstone, side stand, flip, polarity reverse, wrong piece, breakage, pollution, bridging, multiple pieces of IC bending foot
	After reflow soldering				Missing parts, offset, skew, tombstone, side stand, flip, polarity reverse, wrong piece, broken, pollution, Wuxi, Shaoxi, multi-tin, fake welding, solder ball IC bending position any position
	After wave soldering				Insert needle, Wuxi, Shaoxi, Duoxi, fake solder, tin bead, tin hole, short circuit, multiple pieces in any position
	Red rubber board				Missing parts, offset, skew, tombstone, side stand, flip, polarity reverse, wrong piece, broken, Yijiao, multiple pieces in any position
	PCB size				30 × 30 mm ~ 450 × 330 mm (can be customized according to customer requirements)
	P CB thickness				0.3 mm to 6 mm
	PCB warpage				≤6 mm (with fixture-assisted correction) to eliminate the effects of PCB deformation (special requirements can be customized)
	Part height				The net height of ≤35mm is ≤70mm (special requirements can be customized)
	Minimum part				01005 components, 0.3 mm pitch and above IC
	X, Y platform		Drive device		AC servo motor system
			Precise positioning		≤8 microns
	Y marble platform		Precise positioning		≤6 microns
Control System	operating system				Windows8-64Bit
	Computer host				I5 CPU, 8G, GPU graphics, 16G RAM, 128G solid state drive, 1TB mechanical hard drive
	monitor				22-inch LCD widescreen display
Other parameters	Mechanical dimensions				90 cm × 110 cm × 135 cm (height with feet)
	weight				About 450 kg
	power supply				AC 220 volts ± 10%, frequency 50/60HZ, rated power 600W
