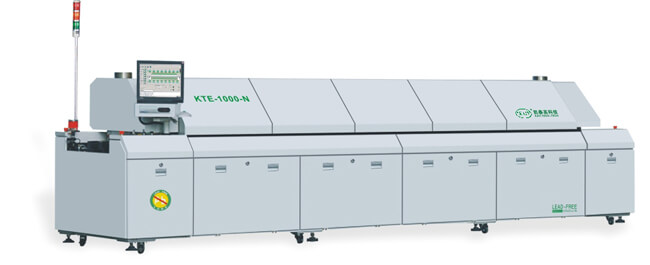

10 Zones Nitrogen SMT Reflow Oven KTE 1000-N
- 10 heating zones
- Nitrogen soldering process
- Weight APPROX:2615KG
- Dimension 6135*1360*1490mm
- Product description: 10 Zones Nitrogen SMT Reflow Oven KTE 1000-N, 10 heating zones, Nitrogen soldering process, Weight APPROX:2615KG, Dimension 6135*1360*1490mm
-
INQUIRY
10 Zones Nitrogen SMT Reflow Oven KTE 1000-N
Specifications:
Features:
1. Totally meet various requirements for the lead free processing.
2. WindowsXP operation system, Chinese/English can be swtiched online.
3. Standard air oven, Patent air system, using hot air convection conduction heat faster, more efficient compensation.
4. PLC+PID closed loop control to achieve high prectise temperature control and repeatable profiles.
5. Dual temperature sensors and dual safety control, system shall cut off the power while abnormal alarm.
6. Modular design to get quick and simple maintenance so that reducing the maintenance time & cost.
7. The temperature inspection instrument constantly monitors the temperature of each temperature zone, ultra-high temperature protection, and automatically switch off the heating power
8. Nitrogen quantification is controllable throughout the process, and each temperature zone is independently closed-loop controlled, which can make the nitrogen concentration range from 5-200ppm.
9. The new two-stage flux recovery system, multi-point collection, fully improves recovery efficiency and reduces maintenance time and frequency for customers.
|
Model
|
Control
|
|
Heating zones qty.
|
Cooling zones qty.
|
|
Heating zone length
|
Current plate structure
|
|
WeightAPPROX:2615KG
|
6135*1360*1490mm
|
|
Color
|
|
Nitrogen system
|
|
Full Nitrogen system: Oxygen analyzer added on the N Standard
|
|
N2 Consumption: Widening machine (610mm Width): 500-1000ppm at 25-30m3 / hr
|
|
Electricity supply
|
Temp. control rangeRoom temp.～300℃
|
80KW
|
|
|
Start power
|
Temp. control method
|
|
Consumption power
|
PCB temperature deviation
|
|
Speed control
|
Data save
|
|
Warm up time
|
Abnormal alarm
|
|

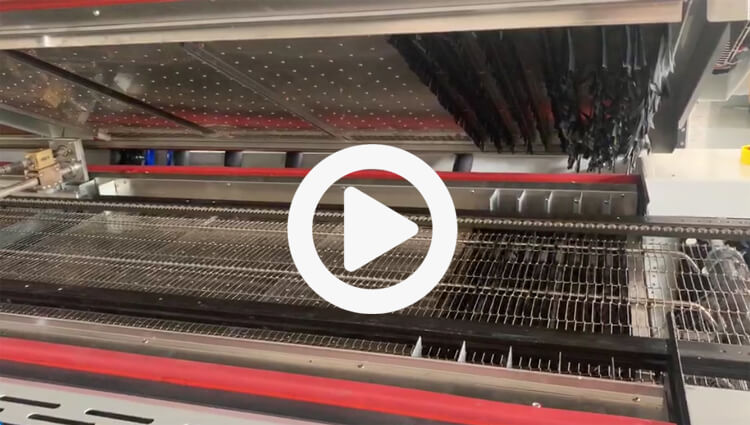

Conveying system
|
2 Sectional structure
|
Front fix
|
Stuck-free type
|
900±20mm
|
50-400mm
|
Mesh+ chain
|
Top/bottom 25mm
|
300-2000mm
|
Left to right
|
Automatic
|
|
Cooling method
|
|
Heating features
|
|
|
Cooling zones
|
|
Warm up time
|
|
Warm up sequence
|
|
Profile transfer time＜15min
|
±1℃
|
±1.5℃
|
≤20 s
|
Keywords:
SMT Reflow Oven, Lead free Reflow Oven, High end Reflow Oven, Reflow Soldering Oven, Reflow Oven Manufacturer, LED Reflow Oven, PCB Reflow Oven, Nitrogen Reflow Oven, Customized Reflow Oven, Dual Rail Reflow Oven, China Reflow Oven.
Flason Electronic Co.,ltd provide a full SMT assembly line solutions, includingSMT reflow oven, wave soldering machine, Pick and place machine, Solder paste printer, PCB loader, PCB unloader, Chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment SMT Spare parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: sales@flason-smt.com
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
